Continuous time

Introduction

Let us consider the classic Lotka-Volterra predator-prey model with two variables: $x(t)$, the prey population size over time, and $y(t)$, the predator population size over time.
Population changes over time depend on:

• the prey reproduction rate, $\alpha$
• the prey mortality rate due to predators, $\beta$
• the predator production rate based on prey consumed, $\delta$
• the predator mortality rate, $\gamma$.

Lotka and Volterra independently proposed the following equations:

$$\left\{\begin{array}{l}x'=x(\alpha-\beta y)\\ y'=y(\delta x-\gamma)\end{array}\right.$$

Modeling a viability problem for the prey

In their article

Térence Bayen, Alain Rapaport. Minimal time crisis versus minimum time to reach a viability kernel: a case study in the prey-predator model. Optimal Control Applications and Methods, 2019, 40 (2), pp.330-350. ⟨10.1002/oca.2484⟩. ⟨hal-01943636v2⟩

the authors addressed the problem of preserving the prey population in the face of predators by keeping their numbers above a given threshold $\underline{x} > 0$ as much as possible. This amounts to ensuring that the state remains within the set

$$K(\underline{x}):=\{(x,y)\,|\, x>=\underline{x}\},$$

based on the premise that low prey density exposes the population to a risk of extinction that should be avoided as much as possible.

Using the original Lotka-Volterra equations, the authors assume constant values ​​for $\alpha=r$, $\beta=1$, and $\delta=1$. However, a control can influence predator mortality; thus, the authors set $\gamma = m + u$, where $m$ is a constant and $u$ is an excess mortality rate that can vary, with $u(t) \in [0, \bar{u}]$.

The viability problem can be summarized as follows:

\begin{equation}
\left\{
\begin{array}{l}
x'=x(r- y)\\
y'=y( x-m-u)\\
u(t) \in [0;\bar{u}]\\
\left(x(t),y(t)\right) \in K(\underline{x}):=\{(x,y)\,|\, x>=\underline{x}\}
\end{array}
\right.
\end{equation}

Solving this problem means finding the set of states $(x,y)$ from which it is possible to maintain a prey population level above $\underline{x}$ over time by manipulating prey excess mortality—in other words, the viability kernel, using the terminology of viability theory.

Results

The authors provide an analytical description of this viability kernel. When $\bar{u}\geq \underline{x}-m$, by considering the invariant of this Lotka-Volterra system (which depends on $u$), $W_u(x,y):=x-(m+u)\ln x+y -r\ln y$, they construct the boundary of the viability kernel using a closed curve composed of three subsets:

• $\{(x,y) | y\geq r \text{ and }W_{\bar{u}}(x,y)=W_{\bar{u}}(\underline{x}, r) \}$.
• Let $x^+>\underline{x}$ such that $W_{\bar{u}}(x^+,r)=W_{\bar{u}}(\underline{x}, r)$,
  $\{(x,y) | y\leq r \text{ and }W_{0}(x,y)=W_{0}(x^+, r) \}$
• Let $r^-$ such that $W_{0}(\underline{x},r^-)=W_{0}(x^+, r)$,
  $\{(x,y) | x=\underline{x} \text{ and } y\in [r^-,r]\}$

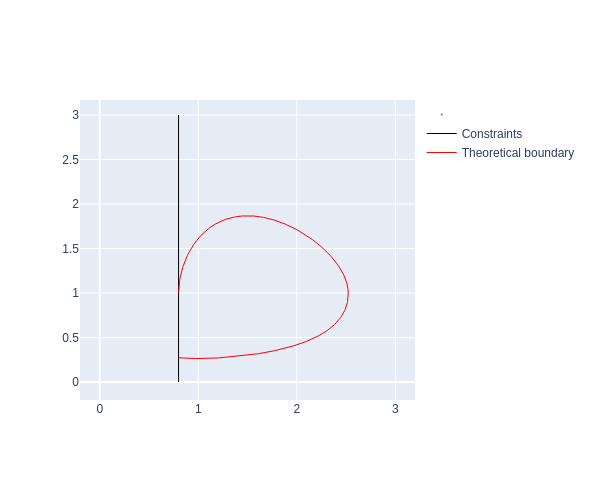

The following figure shows the result for the parameters: $r=1$, $m=1$, $\bar{u}=0.5$, $\underline{x}=0.8$.

Because an analytical description of its boundary exists, this viability problem allows for testing the precision of approximations generated by generic software.

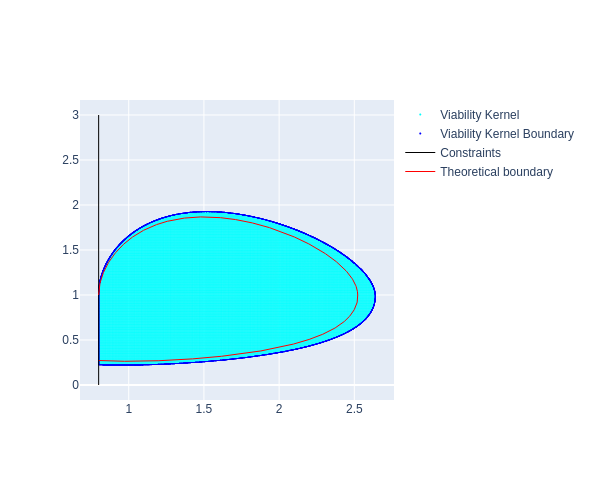

Shown below is a comparison—for $r=1$, $m=1$, $\bar{u}=0.5$, and $\underline{x}=0.8$—between the viability kernel boundary derived from its analytical description (in red) and the approximate result obtained using the ViabLab software on a regular grid of 4001×4001 points (light blue set with a dark blue boundary):

 It can be seen that the kernel approximation is well performed from the outside.

Introduction

The accumulation of nutrients (such as phosphorus or nitrogen) in the water of a lake can lead to a change of state that results in the proliferation of algae, the degradation of water quality and biodiversity, and possibly bacterial blooms: this is eutrophication. The problem of the lake and its riparian holdings is to determine whether it is possible to reconcile the practice of an activity which provides nutrients and the conservation of the lake in a desirable state (oligotrophic, as opposed to eutrophic).

This problem is described in detail in:

S. Martin. The cost of restoration as a way of defining resilience: a viability approach applied to a model of lake eutrophication. Ecol. Soc.   http://www.ecologyandsociety.org/vol9/iss2/art8

Modeling

Nutrients inputs $L$ must be above a minimal threshold $L_{min}$, to take into account the needs of the holdings' activities; And the concentration of total Phosphorus $P$ must remain  below a threshold  $P_{max}$, to keep the lake in an oligotrophic state. These desirable states form the constraints set $K=[L_{min}, +\infty[ \times [0,P_{max}]$.

The evolution of the concentration of total phosphorus in the lake is modeled by a pseudo-sygmoid:

$$\frac {dP} {dt}=-bP(t)+L(t)+r\frac {P(t)^{q}} {m^{q} + P(t)^{q}} \qquad$$

It is assumed that the evolution of phosphorus inputs can be controlled (by decontamination units, the establishment of wetlands, changes in agricultural or industrial practices, etc.), and we model these controls by a single quantity $u\in U=[u_min,u_max]$. The dynamics of the inputs are modeled by:

$$\frac {dL} {dt}=u \in [- u_{min}, u_{max}] \qquad$$

The viabillity problem is then defined by:

\begin{equation}
(P)\left\{
\begin{array}{l}
\frac{dL}{dt}=u\in U=\left[ u_{min},u_{max}\right] \\
\frac{dP}{dt}=-b P(t) + L(t) +r\frac{P(t)^{q}}{m^{q} + P(t)^{q}} \\
\left(L(t),P(t)\right) \in K=[L_{min}, +\infty[ \times [0,P_{max}]
\end{array}
\right.
\end{equation}


Solving this problem means finding the set of states $(L, P)$ from which it is possible to preserve an oligotrophic lake over time while maintaining agricultural activities—that is, the viability kernel in the terminology of viability theory.

Results

The viability kernel can be obtained by calculating an integral curve (see page 7 of https://arxiv.org/pdf/2107.02684).

Indeed, its boundary is defined by a closed curve formed by subsets of the boundary of the constraint set $K$ and an integral curve originating from the point $(L_e, P_{max})$, where $\frac{dP}{dt}(L_e, P_{max}) = 0$, that follows the backward dynamics:
\begin{equation}
\left\{
\begin{array}{l}
\frac{dL}{dt}=-u_{min}\\
\frac{dP}{dt}=-(-b P(t) + L(t) +r\frac{P(t)^{q}}{m^{q} + P(t)^{q}})
\end{array}
\right.
\end{equation}

Next figure shows the result for the following parameters:  $b=1.95$ an$^{-1}$ ; $q=1.9$ ; $m=19.44\  \mu gl^{-1}$; $r=72.22\  \mu gl^{-1}$ an$^{-1}$; $L_{min}=1.25\  \mu gl^{-1}$ ; $P_{max}=17.39\  \mu gl^{-1}$ ;   $|u_{min}|=u_{max}=3.15$.

Because the boundary of this viability problem can be described using an integral curve, it is possible to assess the accuracy of approximations generated by generic software.

Shown below the comparison for $b=0.8$ year$^{-1}$ ; $q=8$ ; $m=1\  \mu gl^{-1}$; $r=1\  \mu gl^{-1}$ year$^{-1}$; $L_{min}=0.1\  \mu gl^{-1}$ ; $P_{max}=1.2\  \mu gl^{-1}$ ;   $-u_{min}=u_{max}=0.09$ between the viability kernel defined by the integral curve (in red) and the approximate result obtained using the ViabLab software on a regular 3001×3001 grid (light blue set with a dark blue boundary):

 It can be seen that the kernel approximation is well performed from the outside.
